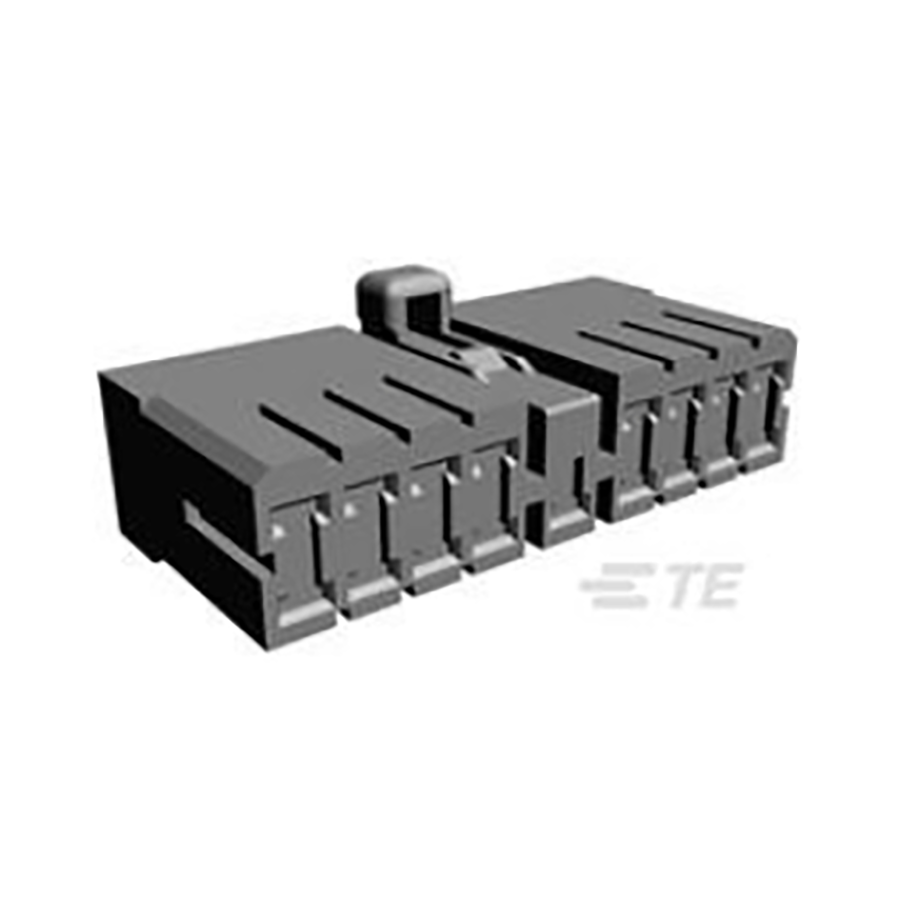

172500-1
Manufacturer:
TE Connectivity
Mfr.Part #:
172500-1
Datasheet:
Description:
Headers and Wire Housings Free Hanging Plug, Socket Number of Positions:17 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 24 mm |
| Width | 50 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 18.796 mm |
| Packaging | Bulk |
| Depth | 24 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 5 mm |
| Flammability Rating | UL94 V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 17 |
| ELV | Compliant |
| Connector Type | Plug, Socket |
| Number of Positions | 17 |
| Number of Rows | 2 |
| Row Spacing | 6 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | Natural |
| Mating Tab Width | 2.9972 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
Stock: 2073
Distributors
pcbx
pcbxUnit Price$0.90708
Ext.Price$0.90708
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90708 | $0.90708 |
| 10 | $0.76944 | $7.69440 |
| 25 | $0.73130 | $18.28250 |
| 50 | $0.69506 | $34.75300 |
| 100 | $0.64462 | $64.46200 |
| 300 | $0.59199 | $177.59700 |
| 500 | $0.54366 | $271.83000 |
| 1000 | $0.49928 | $499.28000 |
